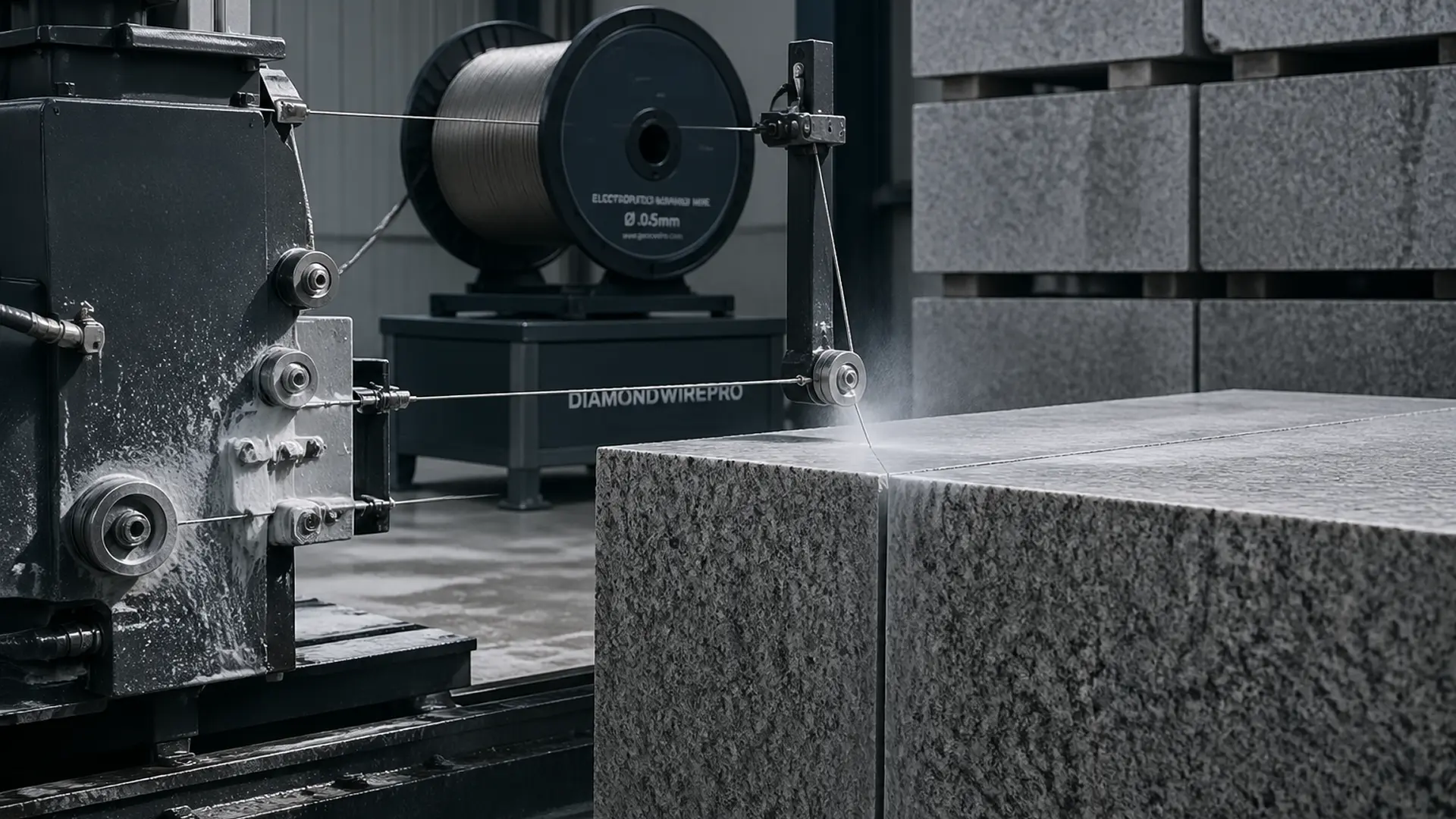

High tension, ultra-low kerf loss, and exceptional stability up to 1800 m/min. Custom-engineered for granite, marble, and advanced rough stone block slicing.
Leveraging closed-loop technological advantages to maximize your stone yield and reduce power consumption.
Maintains exceptional cutting performance at wire speeds up to 1800 m/min, significantly boosting efficiency.
Supports up to 300N tension, allowing for aggressive feed rates without compromising wire integrity.

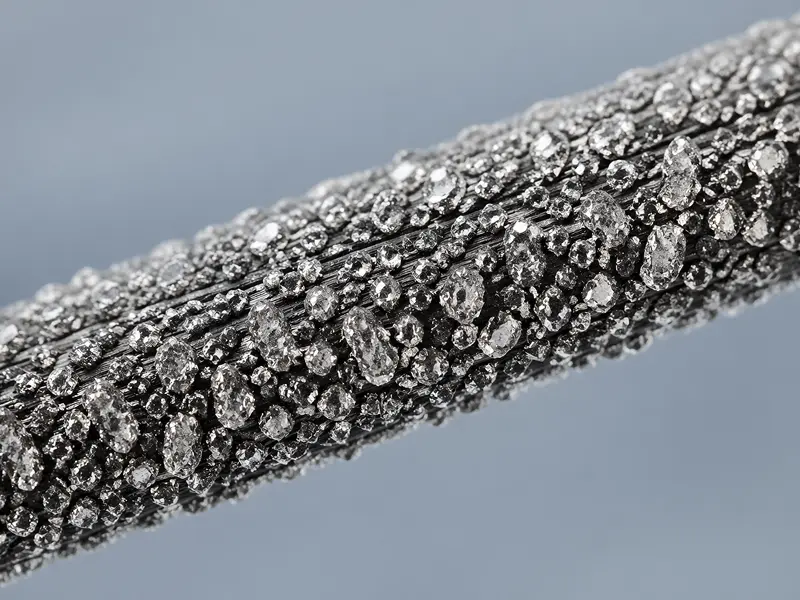

Produced via highly automated, proprietary manufacturing lines ensuring superior diamond distribution.

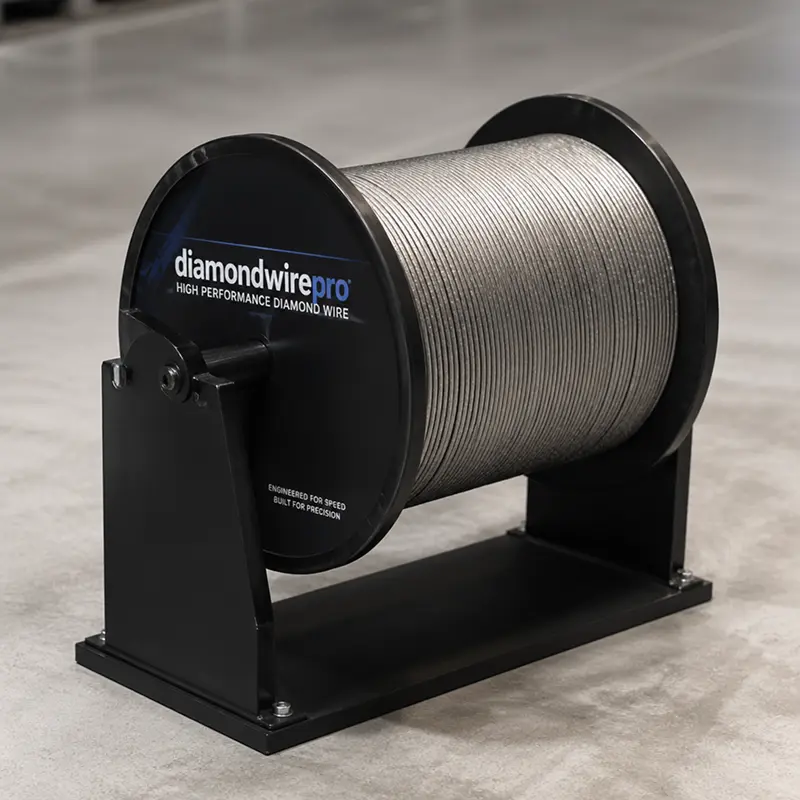

Neatly wound to prevent tangling, ensuring smooth unwinding at high line speeds.
Comprehensive specifications for our electroplated diamond wire portfolio.
| Specification & Model | Finished Wire Diameter (mm) | Breaking Force (N) | Purpose |
|---|---|---|---|
| 0.65mm Electroplated Wire | 0.65 ± 0.03 | ≥ 490 | Slicing of stone |
| 0.55mm Electroplated Wire | 0.55 ± 0.03 | ≥ 400 | Slicing of stone |
| 0.50mm Electroplated Wire | 0.50 ± 0.02 | ≥ 380 | Slicing of stone |
| 0.45mm Electroplated Wire | 0.45 ± 0.02 | ≥ 280 | Slicing of stone |
| 0.40mm Electroplated Wire | 0.40 ± 0.02 | ≥ 220 | Slicing of stone |
| 0.35mm Electroplated Wire | 0.35 ± 0.02 | ≥ 160 | Slicing of stone |
Fill out the form to request official pricing, technical consultation, or claim your free sample spool.
